Wheat Washing Machine

Wheat washing machine is the main equipment for cleaning wheat in the process of grain processing.
It is mainly used to clean the dust and pesticide residues on the surface of wheat. It is mainly used to clean off the dust and pesticide residues on the surface of wheat, and use the principle of specific gravity to remove the gravel impurities in wheat. Ensure that the wheat into the mill is clean and hygienic, reduce the ash and sand content of flour, and improve the accuracy of flour.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

1.The upper and lower bearings of the drying part adopt high-quality technology and quality assurance.
2.The fish scale plate, water door and water tank are made of stainless steel to prolong the service life.
3.It can be matched with the process of wetting wheat to change the characteristics of wheat speciality and grinding performance.

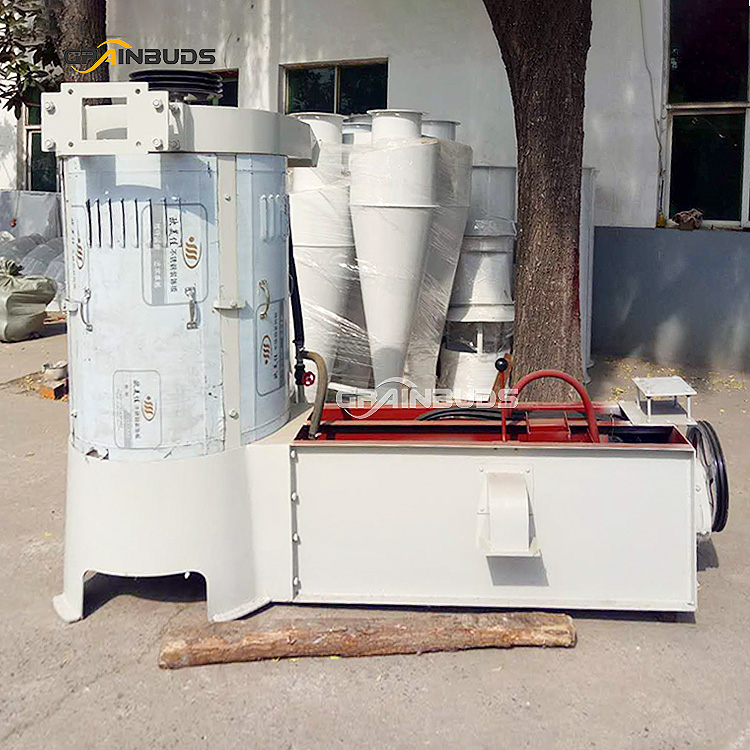

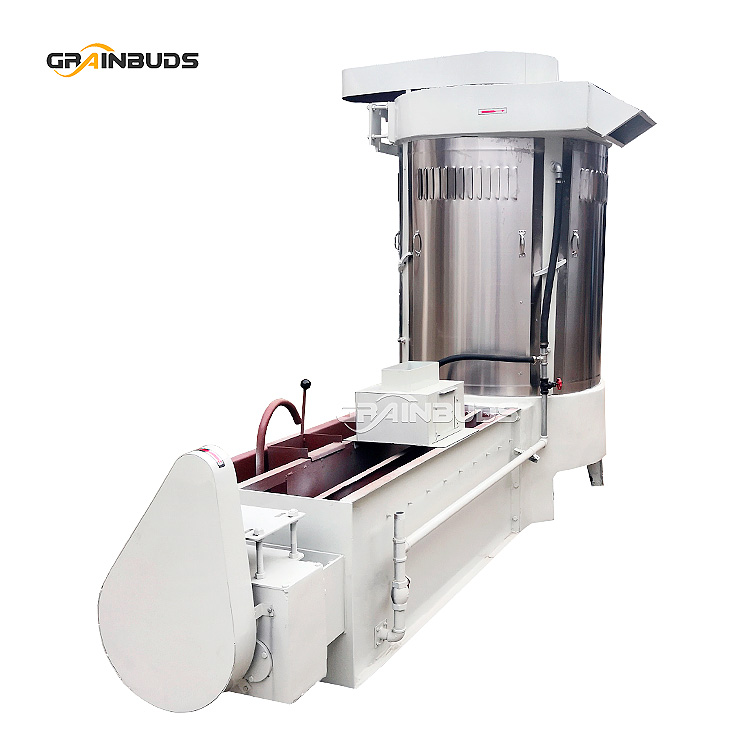

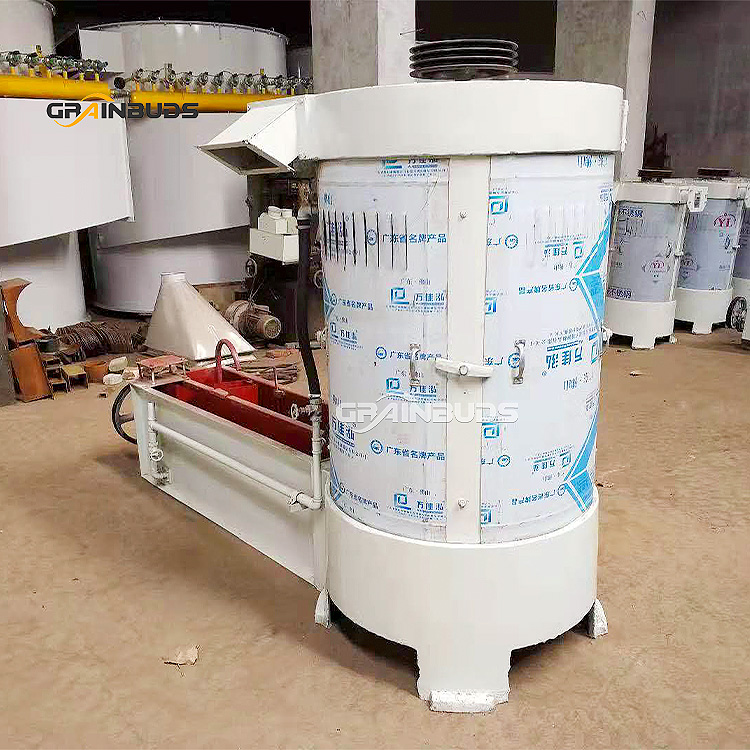

Wheat Washing Machine
Wheat Washing Machine
Wheat Washing Machine

Technical Parameters

Type	Capacity （ t/h）	Spindle speedr （ r/mm ）	Dryer diameter （ mm ）	Power （kw ）	Weight （kg ）	外形尺寸 Dimension
XMS30	0.5	930	300	6/0.75 + 4/1.5	230	1450× 550× 1160
XMS40	1-2	750	400	6/0.75 + 4/3	460	1760×700× 1380
XMS50	2-3	600	500	6/1.1 + 4/4	900	2150×950× 1650
XMS60	3-5	550	600	6/1.5 + 4/5.5	1200	2500× 1050× 1760
XMS80	5-7	480	800	6/1.5 + 4/7.5	2100	3100× 1450×2150
XMS90	7-9	400	900	6/1.5 + 6/11	2800	3500× 1600×2260
XMS105	10-13	365	1050	6/1.5 + 6/15(18.5)	3500	3680× 1650×2460

Application Field

Our wheat washing machine is specially designed for grain processing, adopts advanced cleaning technology, effectively removes the dust and pesticide residues on the surface of wheat, and uses the principle of specific gravity to precisely separate the gravel impurities, ensuring that the wheat is clean and pollution-free. Stable operation of the equipment, high cleaning efficiency, energy saving and environmental protection, is to improve the quality of grain processing must choose.
