Destoner Machine

Destoner machine is mainly used to classify and de-stone granular materials such as wheat, rice, corn, soybean and so on. The machine can effectively separate stones, rocks, glass and other high-density impurities in grains. The use of this machine needs to be equipped with an independent wind screen, the effect is more stable and outstanding.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

1.The angle of inclination of screen surface can be adjusted, and the size of suction wind can be adjusted, which is suitable for different grain processing industries.
2.Adopting imported rubber spring support, small vibration, low noise, stable operation.
3.The vibration motor has low energy consumption and stable performance.
4.High separation efficiency, can effectively remove the fine stones (shoulder stones) from the grain stream.
5.External fan, the whole machine is sealed, no dust outside.

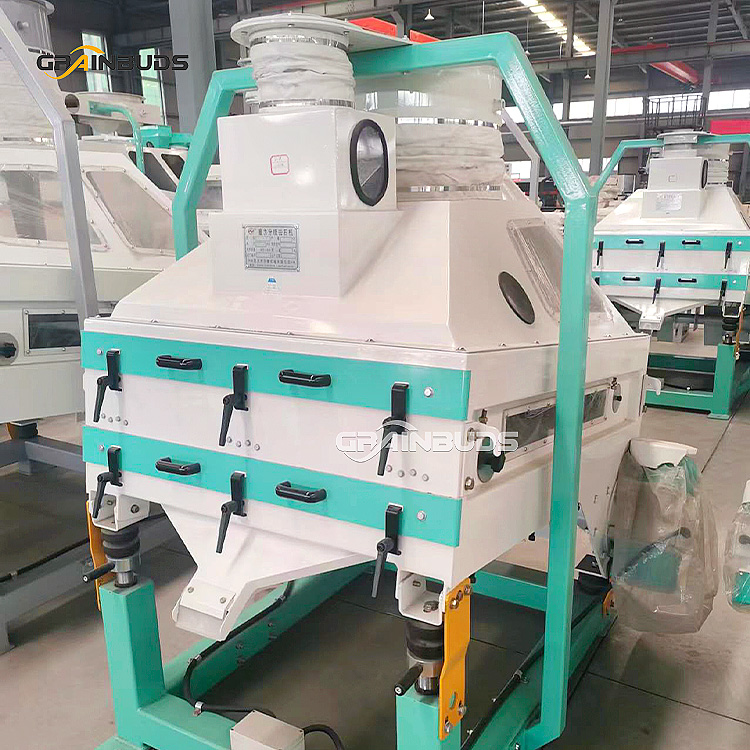

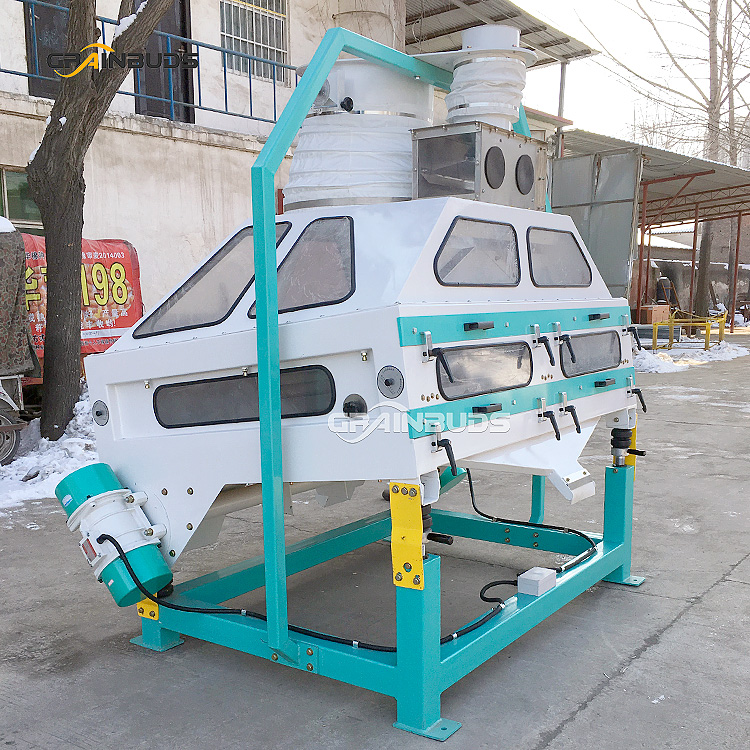

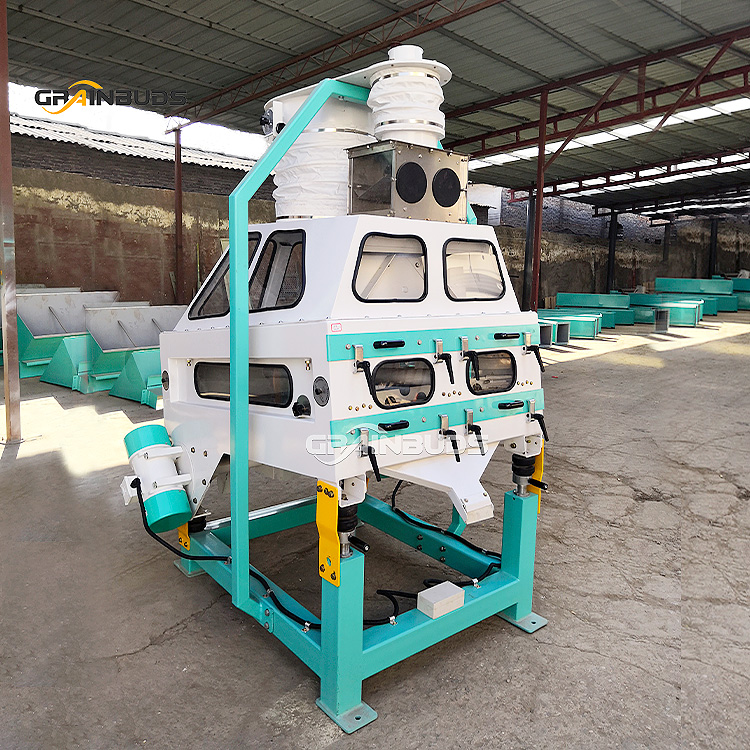

Destoner Machine
Destoner Machine
Destoner Machine

Technical Parameters

Type	Capacity（ t/h ）			Air Flow	Power	Dimension	Weight
Type	Wheat	Rice Crop	Maize	（ m³/h）	（kw ）	（ L ×W ×H ）（ mm ）	（kg）
TQSF80a	4-6	4-6	4-6	6700	0.25 ×2	1550× 1300× 1650	540
TQSF100a	7-10	6-8	6-9	8400	0.3 × 2	1680× 1500× 1780	615
TQSF125a	10-15	8-13	9-12	11500	0.3 × 2	1680× 1750×2160	690
TQSF150a	15-18	13-15	12-14	14000	0.55 ×2	1680×2000×2160	760
TQSF180a	17-22	16-18	15-17	16800	0.55 ×2	1680×2300×2160	900

Application Field

Destoner Machine is used for grading and de-stoning of grain particles (wheat, soya bean, corn, etc.), and due to the effect of wind selection, it can also effectively remove stones such as juxtaposed stones from grain, and it can also be used for seed selection of all kinds of grains. De-stoning machine is a kind of equipment for removing stones and heavy impurities from grains. It is suitable for grain industry, feed industry, food industry, brewing industry.
