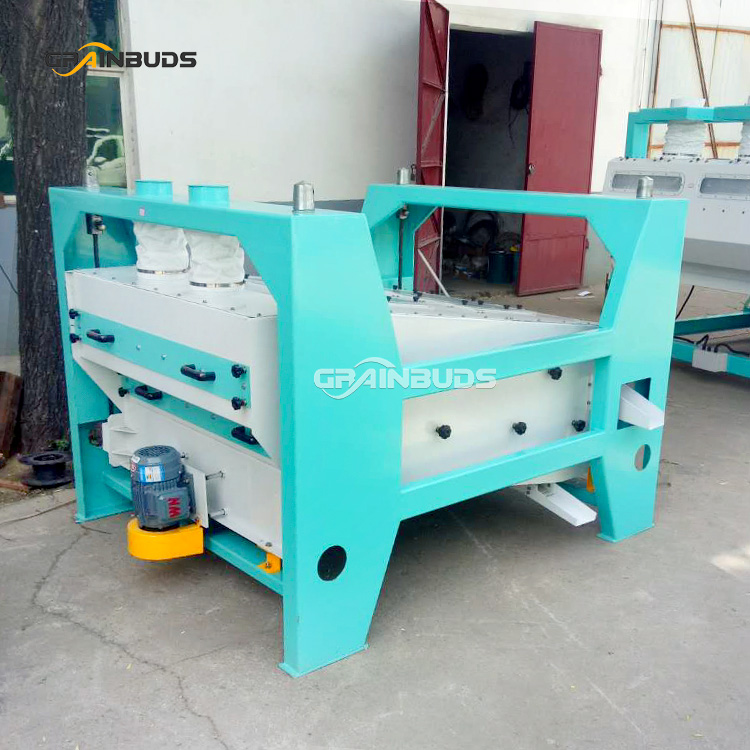

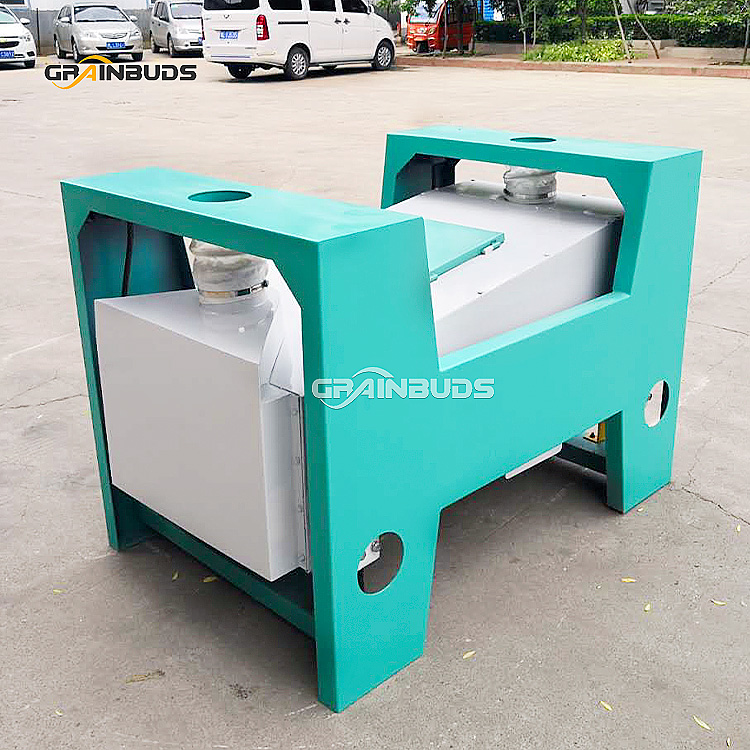

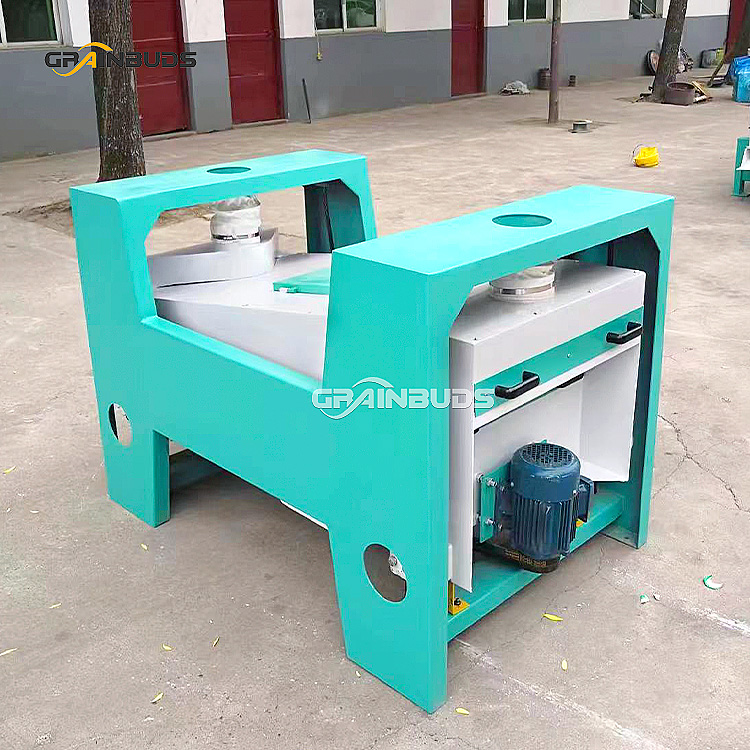

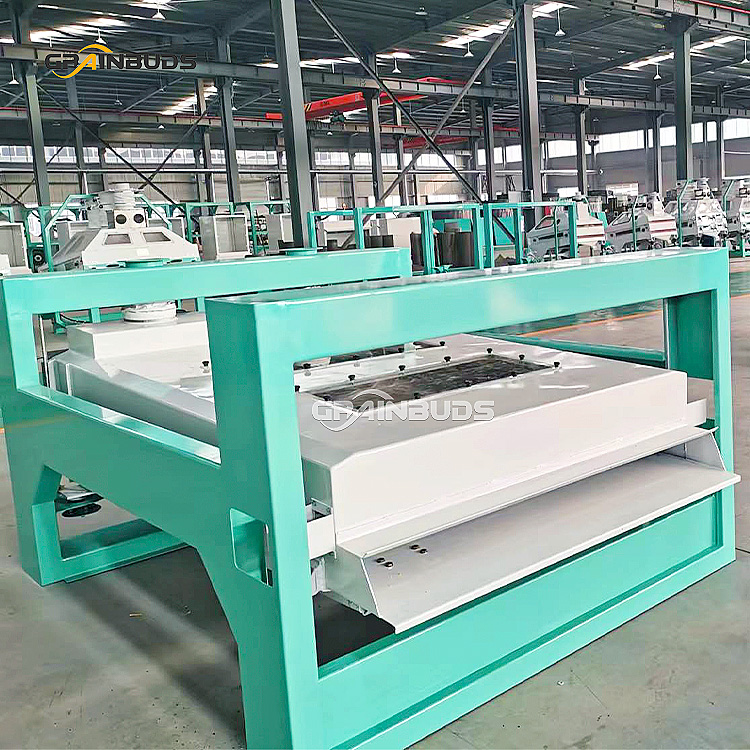

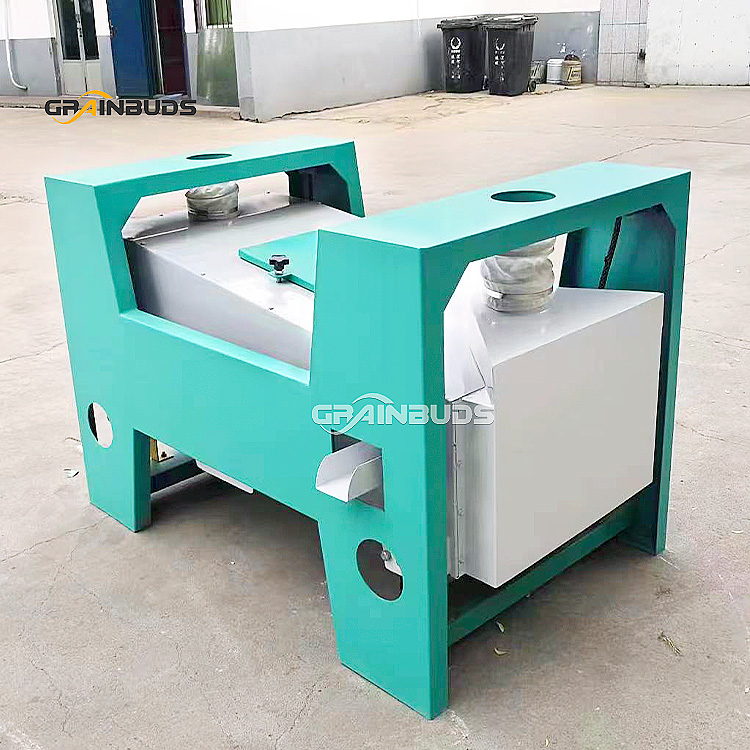

Flat Rotary Screen

Flat Rotary Screen, mainly using plane rotary movement, equipped with the corresponding specifications of the screen surface, separation of impurities in the original grain, in order to achieve the purpose of cleaning the original grain. Mainly used for wheat, feed, food and chemical industry raw materials cleaning or grading, can be used with circulating air separator or vertical suction duct supporting cleaning effect is better.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

1.It is convenient to change the sieve grid, which can be adjusted at any time according to the different materials to be screened.
2.Configured with rubber ball cleaning device, can effectively clean up the screen surface, to prevent clogging of the screen holes.
3.Good sealing of the equipment, dust does not rise.
4.Transmission part of the bearing adopts advanced technology to reduce the maintenance cost.
5.Low noise, stable operation, low energy consumption, high output.

Flat Rotary Sifter
Flat Rotary Sifter
Flat Rotary Sifter

Technical Parameters

Type	Capacity	Power	Speed	Radius of rotation	Weight	外形尺寸 Dimension （ L ×W × H ）
Type	t/h	kw	rpm	mm	kg	mm
TQLM63	2-3	0.55	386	6-7.5	460	1400×880×950
TQLM80	4-6	0.75	386	6-7.5	550	1600× 1050× 1360
TQLM100×150	6-8	1.1	386	6-7.5	680	1850× 1350× 1420
TQLM125× 150	8-12	1.1	386	6-7.5	800	1850× 1600× 1420
TQLM160× 150	10-15	1.5	386	6-7.5	925	2000× 1970× 1360
TQLM150×200	15-25	1.5	386	6-7.5	1120	2450×2000× 1300

Application Field

Flat Rotary Screen adopts rotary motion, the material can get a larger screening area in the sieve body, so the screening efficiency is higher and the screening precision is higher. The sieve grid is easy to load and take, there are two forms of fixed and mobile. Suitable for large production capacity material size impurity cleaning, widely used in grain, chemical, brewing and other industries.
