Rotary Vibrating Screen

Rotary Vibrating Screen

Rotary Vibrating Screen is mainly used for cleaning or grading raw materials in powder making, feed, rice milling, chemical industry, foodstuff, oil pressing and other industries. By replacing the sieve plate with different apertures, it can clean many kinds of granular materials such as wheat, corn, rice, oil and so on. It can be used in combination with suction duct or circulating wind and other air separation equipment to separate light impurities, such as dust, grain shells, etc., to enhance the cleaning effect.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

1.High overall strength, large screening output.
2.Three-layer screen surface design, large screening area, good processing effect.
3.The sieve frame is equipped with rubber ball cleaning device, which can effectively clean up the sieve surface and ensure the output;
4.Universal joint boom, strong and durable, reduce maintenance.
5.With feed screed device, uniform feed, to ensure the effect.

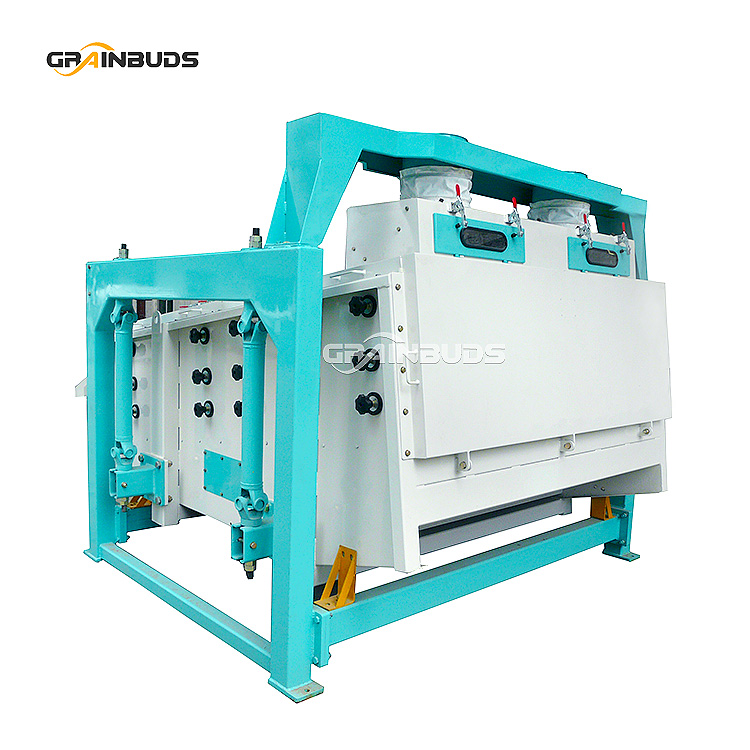

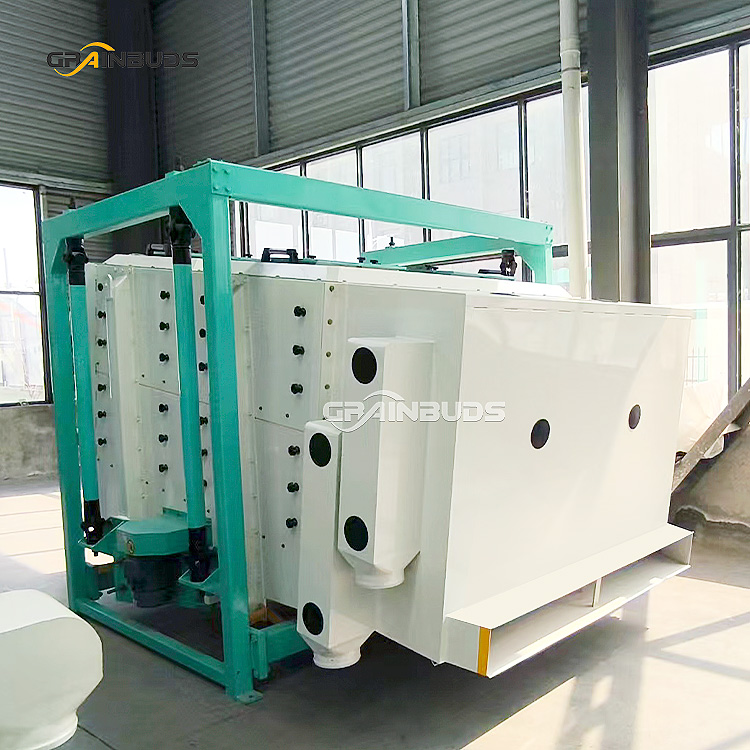

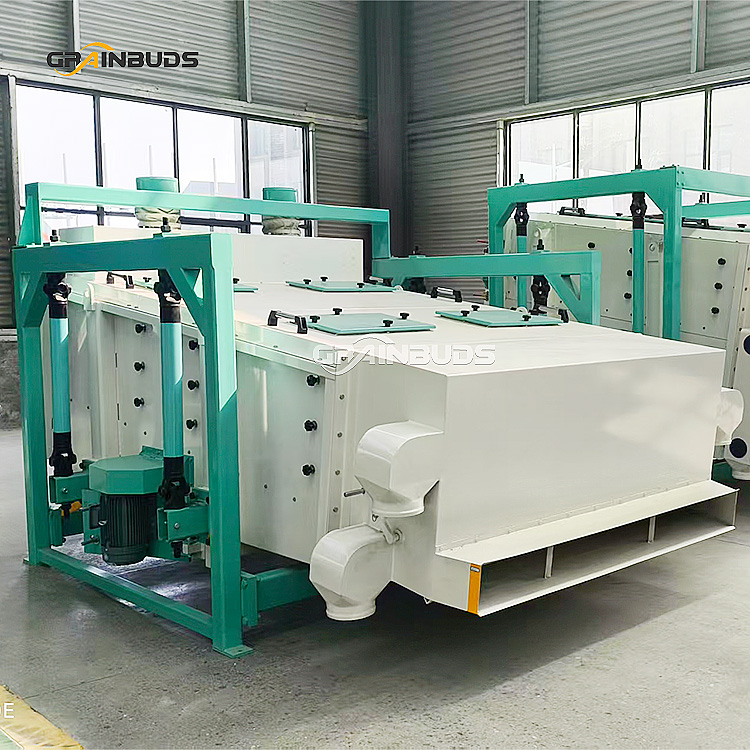

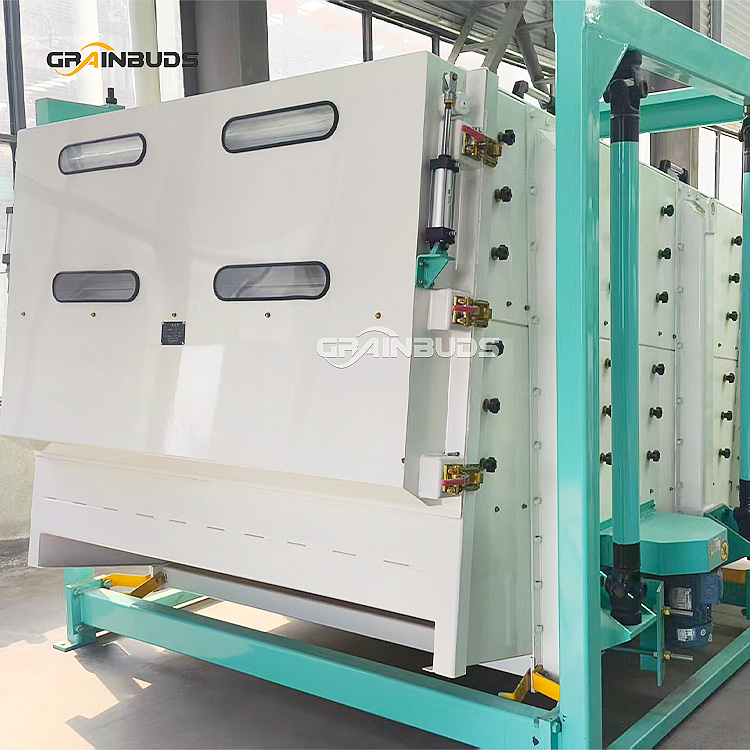

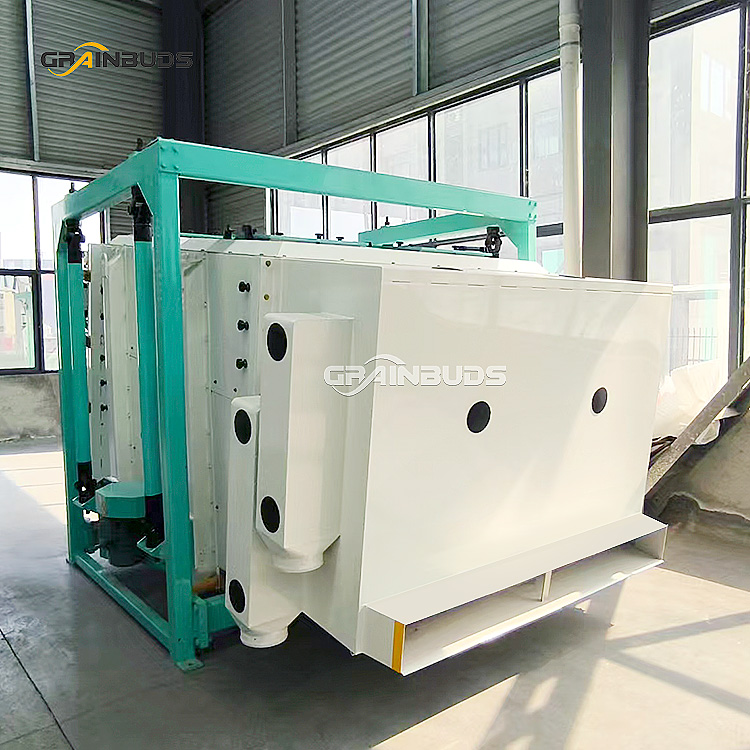

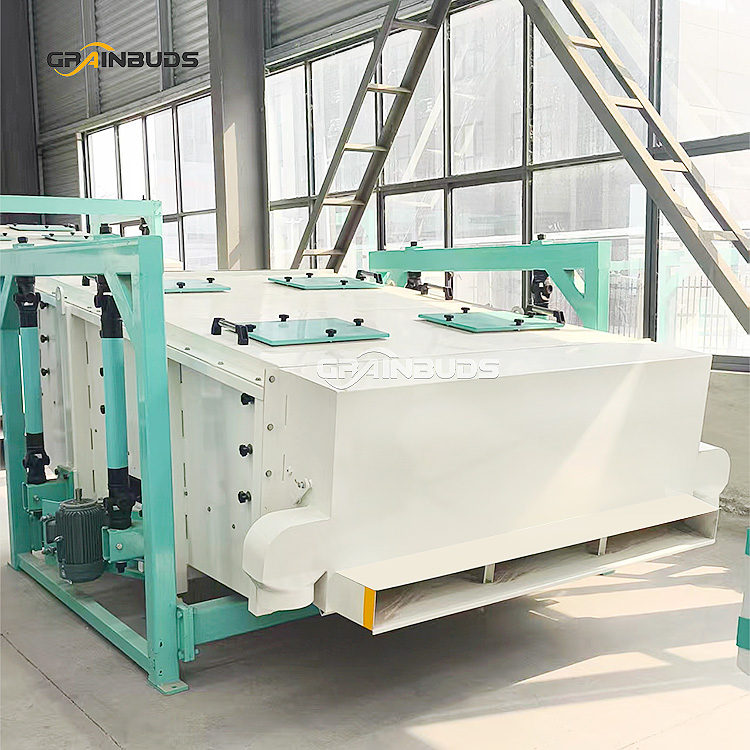

Rotary vibrating sifter
Rotary vibrating sifter
Rotary vibrating sifter

Technical Parameters

Type	Capacity	Power	Speed	Weight	Sieve area	Dimension
Type	T/h	Kw	r/min	Kg	（ L ×W ）mm	（ L ×W × H ）mm
TQLX150×250	30-60	3	320	2450	1500×2500	3100×2200×2100
TQLX200×250	50-90	4	320	3250	2000×2500	3100×2700×2100

Application Field

Rotary Vibrating Screen is a kind of high efficient screening equipment, usually used for granular materials for screening. The materials are quickly stratified on the screen surface, thus achieving the purpose of separation, filtration and dust removal. It is suitable for rice milling, powder making, oil making, feed, food and chemical industries.
