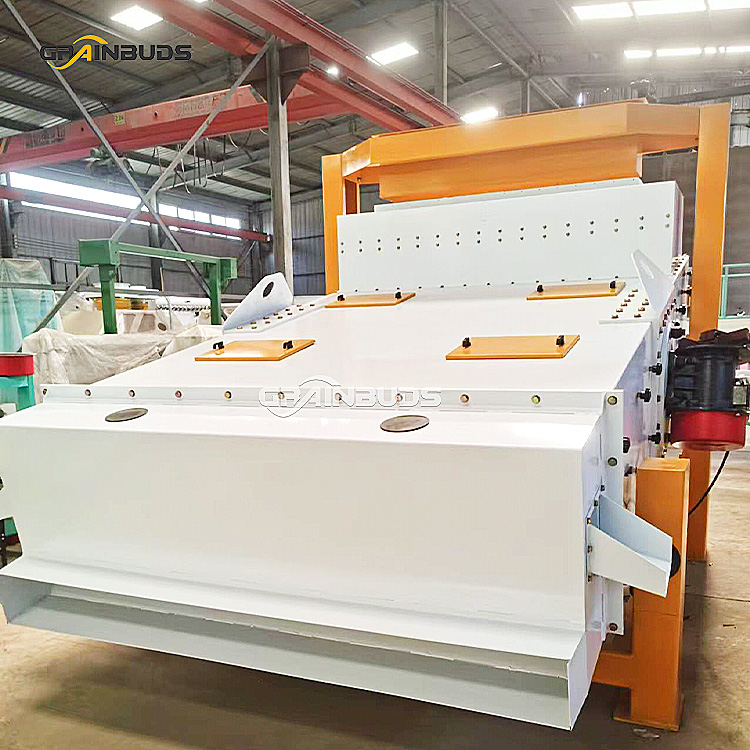

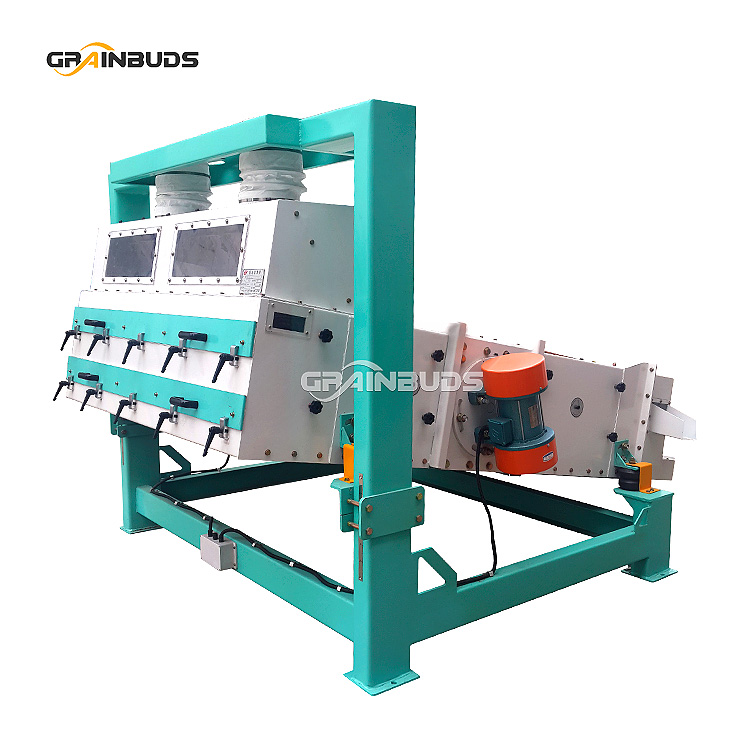

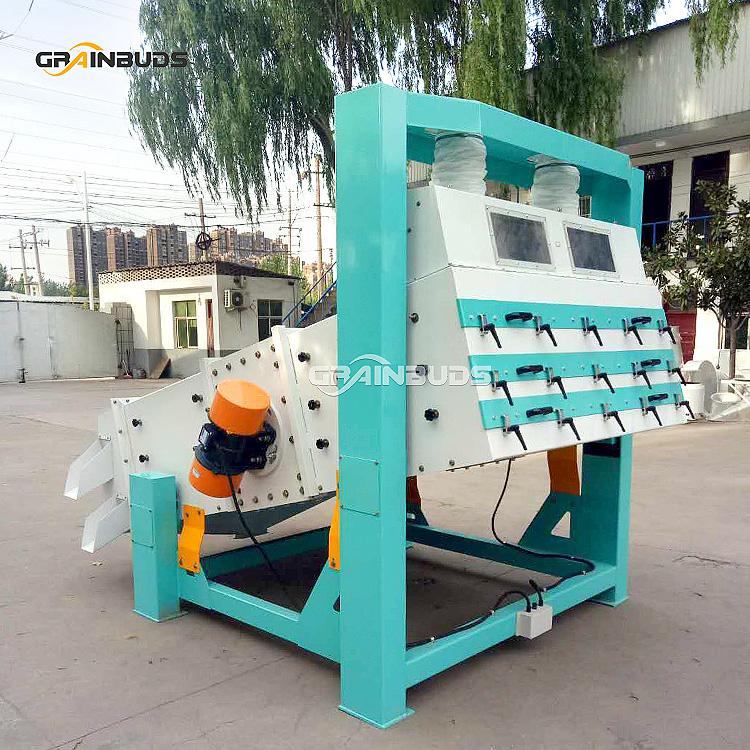

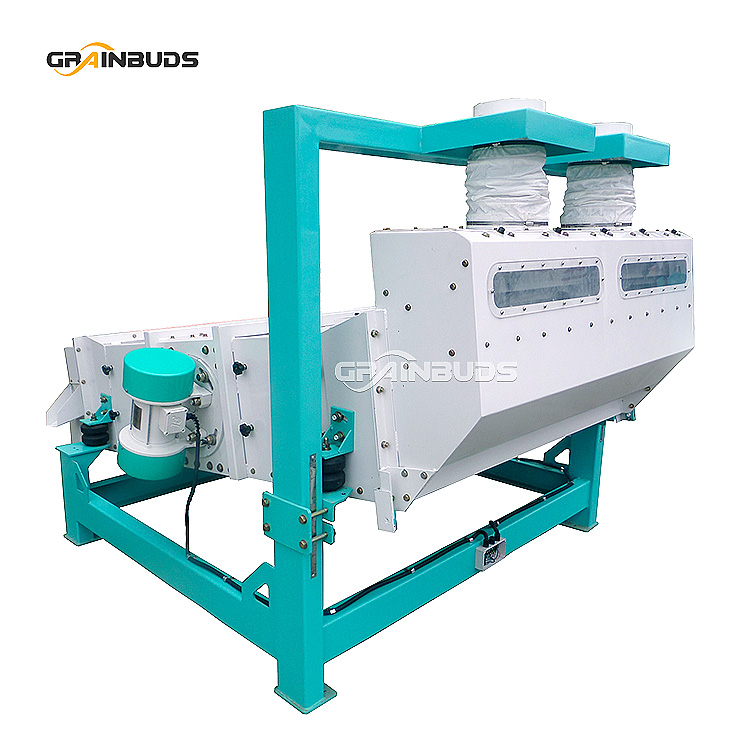

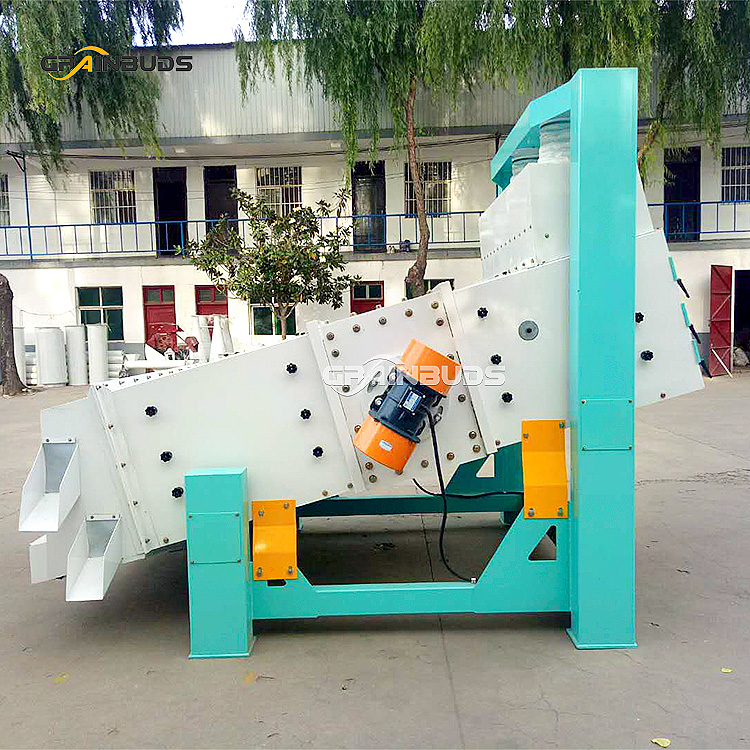

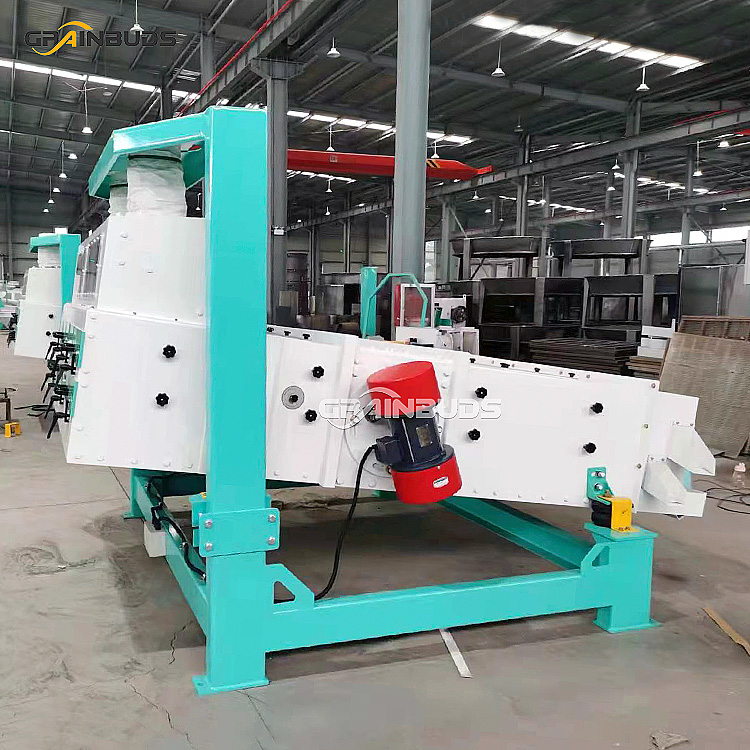

Vibration Screen

Vibration Screen is mainly used for screening and separating large, medium, small and light impurities in grain.

Light impurities for sieving, separation; can be widely used in powder, feed, rice milling, distillery, chemical, food, oil, corn processing and other industries of raw materials cleaning or material classification.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

1.It is convenient to change the screen frame, and can be adjusted at any time according to the different materials to be screened.

2.Configured with rubber ball cleaning device, can effectively clean up the screen surface, to prevent clogging of the screen holes.

3.four corners of the rubber spring support, stable structure, without lubrication, to ensure the service life.

4.It can be used together with circulating wind sifter or vertical suction duct and other wind sifter equipment to separate light impurities, such as dust, grain shells, etc., to enhance the cleaning effect.

Technical Parameters

Type	Capacity		Power	Weight	Sieve area （ L ×W ）	Dimension （ L ×W × H ）
	Clear	Pretreat	Power	Weight	Sieve area （ L ×W ）	Dimension （ L ×W × H ）
	T/h	T/h	kw	kg	mm	mm
TQLZ60× 125	2-3	5-6	2 ×0.25	400	600× 1250	1550× 1200× 1350
TQLZ80× 150	4-6	8-12	2 ×0.25	550	800× 1500	1850× 1340× 1350
TQLZ100×200	6-8	12-16	2 ×0.55	720	1000×2000	2368× 1590× 1626
TQLZ125×200	8-10	15-20	2 ×0.55	820	1250×2000	2337× 1840× 1626
TQLZ150×200	14-18	20-30	2 ×0.75	1040	1500×2000	2337×2090× 1823
TQLZ180×200	18-20	30-40	2 ×0.75	1140	1800×2000	2400×2440× 1640
TQLZ200×200	20-24	40-60	2 ×0.75	1250	2000×2000	2400×2640× 1640
TQLZ150×270	25-30	50-70	2 ×0.75	1580	1500×2700	3157×2120×2520
TQLZ180×270	30-40	70-90	2 ×0.75	1750	1800×2700	3120×2480×2520
