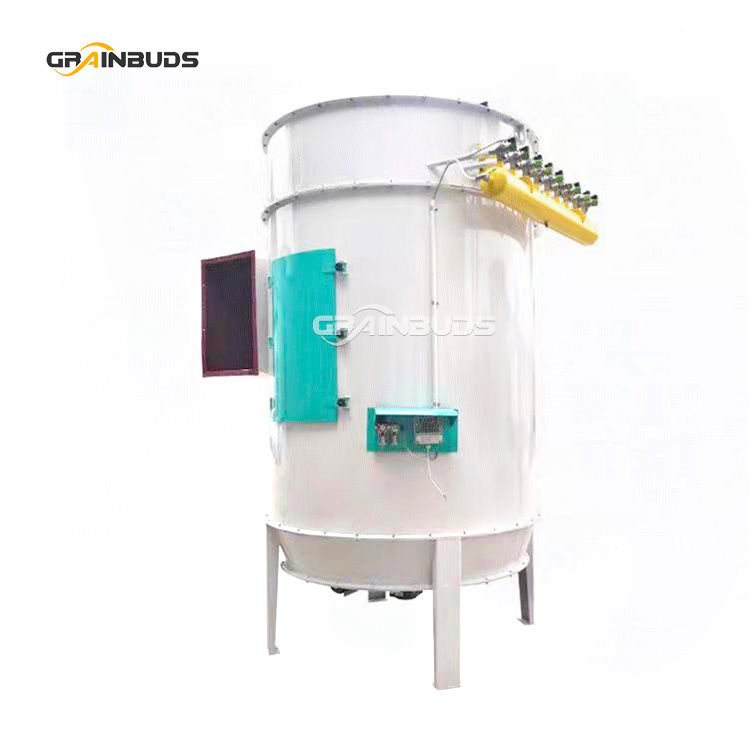

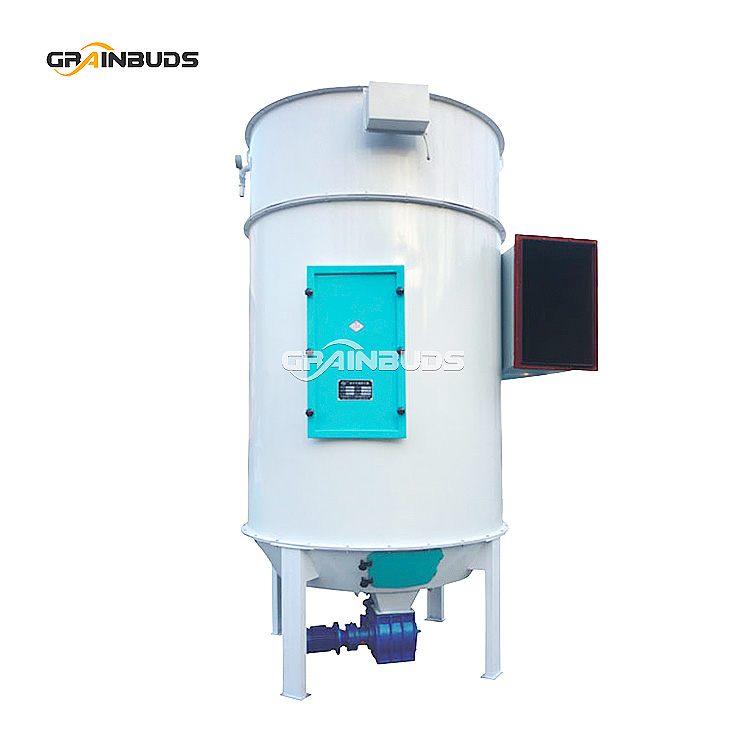

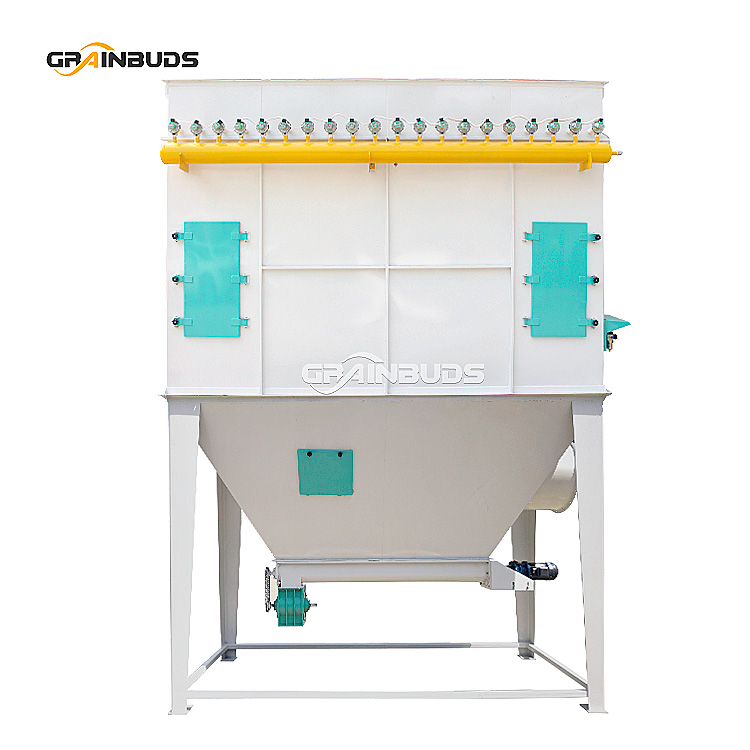

Pulse Dust Collector

High-pressure pulse dust collectors are suitable for filtering and removing dusty gases with a filtration temperature below 80° Celsius.
The treated gas meets the relevant regulations of environmental protection. Widely used in grain, food, chemical, building materials, medicine, metallurgy, mining and other industrial dust cleaning, purification and recycling.

Send Email Get A Quote

Description Technical Parameters Application Field Related Products Inquiry

Description

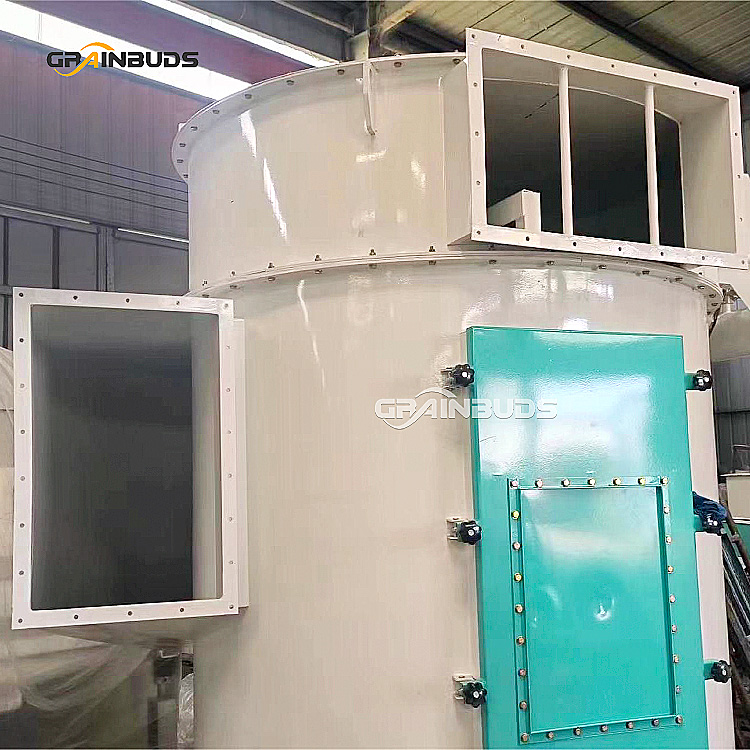

1.The box body adopts cylinder type, which increases the rigidity and strength of the box body.

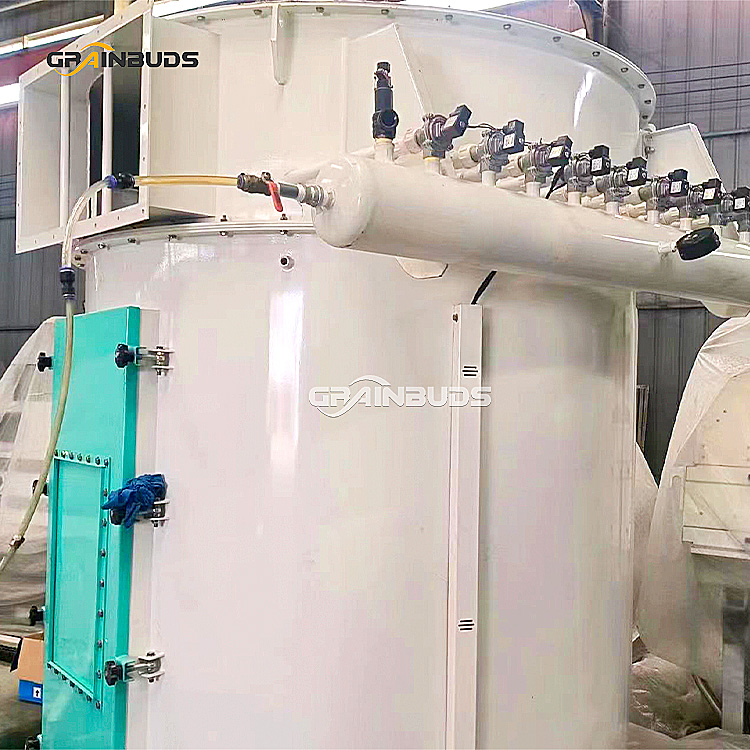

2.Single pulse time to clean many cloth cylinders, fast, energy-saving. Pulse time can be adjusted by multi-section and multi-frequency control.

3.Adopting tangential centrifugal feeding, which is conducive to reducing the resistance of the equipment and the load on the filter bag.

4.High precision controller, high reliability, multi-parameter adjustable, intuitive display, easy to operate.

5.The installation method of cloth cylinder can choose spring installation or cage skeleton installation, which is more convenient for maintenance and not limited by the height of the plant.

We are a manufacturer specialising in the research, development and production of grain cleaning equipment and all kinds of complete sets of grain processing equipment.

Technical Parameters

Type	Pressure	Filter bag size	Filtered air volume	Filtration area	Power	Weight
Type	（ Mpa ）	（ mm ）	（ m³/h）	（㎡）	（kw ）	（kg）
BLM-26	0.4-0.6	Φ120×2000	3530~4700	19.6	0.75	890
BLM-38	0.4-0.6	Φ120×2000	5290~7000	28.7	0.75	1120
BLM-52	0.4-0.6	Φ120×2000	7060~9410	39.2	1.1	1250
BLM-78	0.4-0.6	Φ120×2000	10580~14110	58.8	1.5	1550
BLM-104	0.4-0.6	Φ120×2000	14100~18810	78.4	1.5	1800
BLM-130	0.4-0.6	Φ120×2000	17640~23520	98.0	1.5	2000
